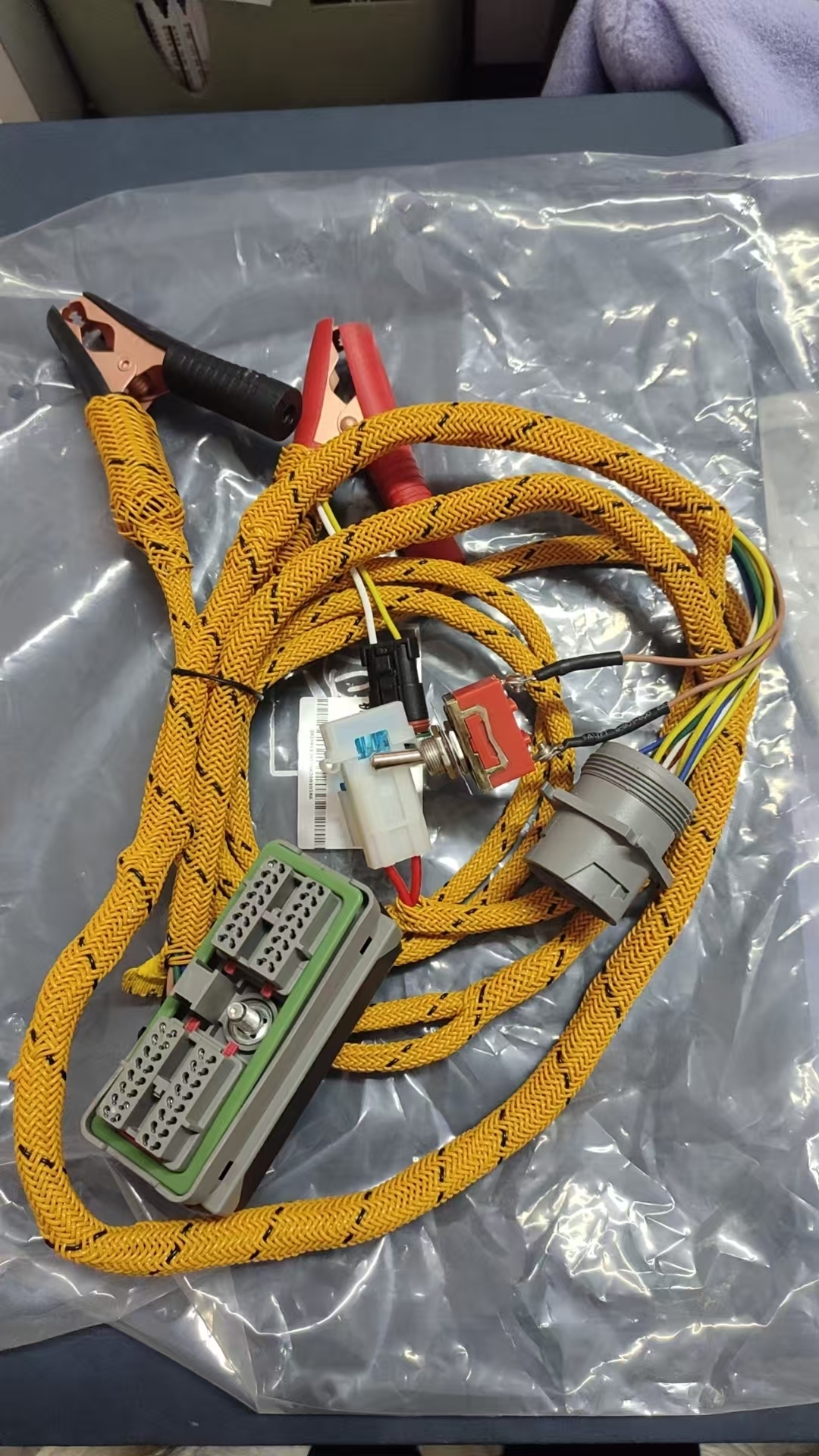

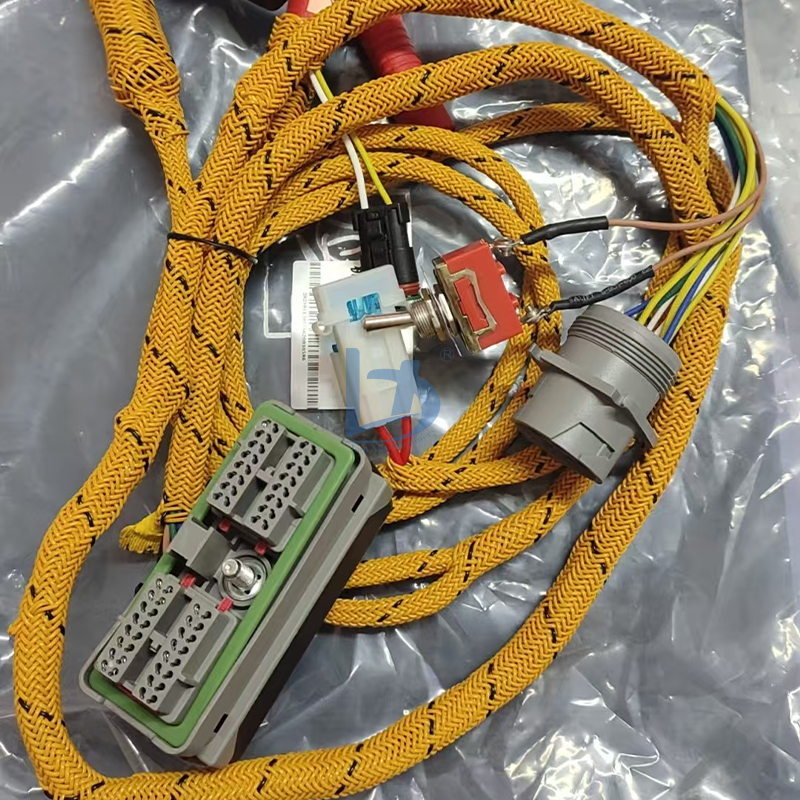

The CAT diesel engine test cable is a specialized wiring harness used during engine troubleshooting inspection and maintenance. It provides temporary or service-oriented electrical connections between diagnostic equipment and compatible engine circuits allowing technicians to check electrical signals sensor circuits and related engine control functions.
This test cable is intended for compatible Caterpillar engine and excavator applications including C4.4 C6 C7 C7.1 C9 C11 C13 C15 and C18. It can also be used in service work involving excavator models such as E324D E326D E327D and E329D when the engine and connector configuration matches.
Unlike a standard replacement engine harness this product is primarily intended as a test and diagnostic wiring harness. It can help technicians isolate wiring faults identify abnormal electrical signals and check connections between engine components and the control system during maintenance or troubleshooting.
The cable is useful when investigating issues such as intermittent sensor signals electrical connection faults damaged wiring open circuits short circuits or communication problems. By providing a suitable test connection it can make electrical diagnosis and component inspection more convenient during engine repair.
Before use the connector type pin configuration engine model and machine electrical system should be carefully verified. Different Caterpillar engine generations and excavator configurations may use different connectors and wiring arrangements so the listed engine and machine models should not be considered universally interchangeable.
For Caterpillar excavator repair workshops diesel engine technicians machinery dealers and service providers the engine test cable wiring harness provides a practical tool for electrical testing troubleshooting and maintenance of compatible engine systems.
|
item
|
value
|
|
Condition
|
New
|
|
Applicable Industries
|
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, Other
|
|
Showroom Location
|
None
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
Ordinary Product
|
|
Place of Origin
|
China
|
|
Guangdong
|
|
|
Brand Name
|
lanxin
|
|
Warranty
|
6 months
|
|
Product name
|
Excavator Diesel Engine Test Cable for CAT C4.4 C6 C7 C7.1 C9 C11 C13 C15 C18 E324D E326D E327D E329D Wiring Harness
|
Q1: What is this diesel engine test cable used for?
A: It is primarily used for engine electrical testing troubleshooting and diagnostic work. It provides temporary service connections for checking compatible engine circuits and signals.
Q2: Which engines can this test cable be used with?
A: The listed applications include C4.4 C6 C7 C7.1 C9 C11 C13 C15 and C18 engines. Exact compatibility depends on the connector and engine configuration.
Q3: Which excavators are listed for this wiring harness?
A: The listed excavator applications include E324D E326D E327D and E329D. Please verify the engine model and connector configuration before ordering.
Q4: Is this the same as a standard engine wiring harness?
A: No. A test cable is mainly designed for diagnostic and electrical testing purposes while a standard engine harness is normally installed as part of the machine wiring system.

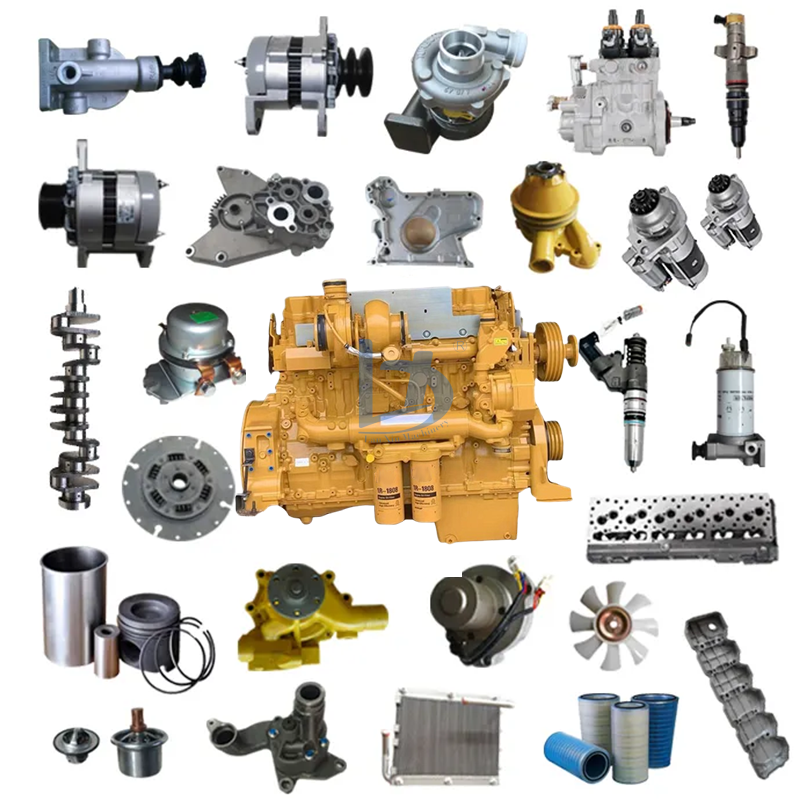

Q5: What other Caterpillar electrical products do you supply?
A: We supply engine test cables diagnostic wiring harnesses engine harnesses chassis harnesses injector harnesses computer boards monitors ECUs sensors switches solenoids and other excavator electrical spare parts.
