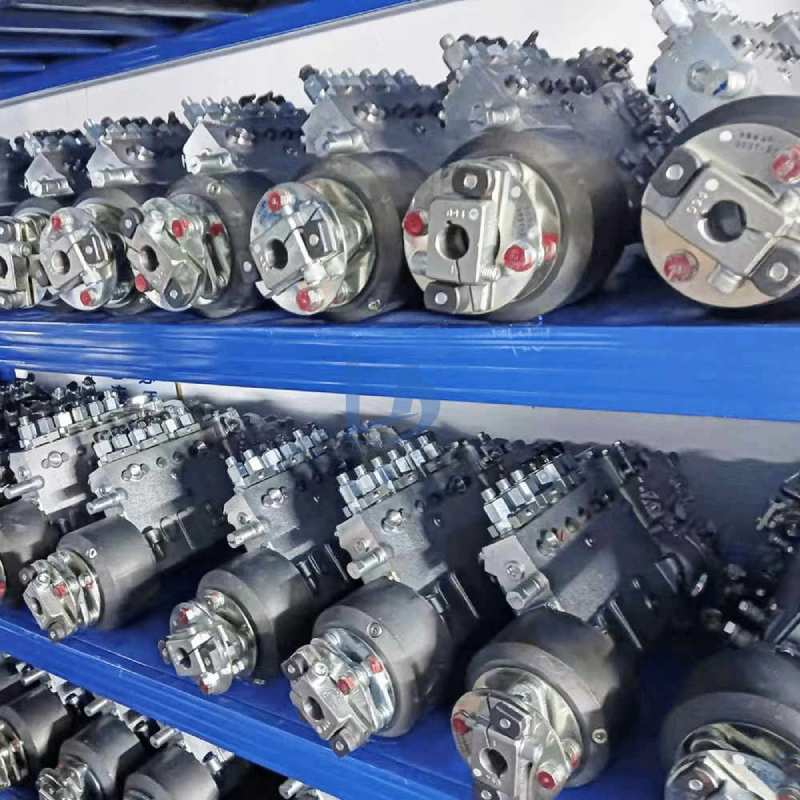

101603-2800 101060-6820 Fuel Injection Pump Jo8c diesel Pump for Isuzu 6HK1 Engine Parts

Product Overview

The Isuzu 6HK1 is one of the most common engines in the excavator and wheel loader fleets still working today, and every one of those machines depends on a single component to pressurise diesel and time each delivery to the cylinder. The diesel fuel injection pump does that job, and when it wears the whole engine feels it: longer cranking, a weaker pull under load, and a change in the exhaust note that the operator notices before anyone else does.

This unit is supplied new rather than rebuilt. There is no core to send back and no exchange pump to wait for, which matters when the machine is already standing and the repair clock is running against you.

The people who order from us are usually under that pressure — an independent workshop handling a breakdown, a distributor keeping shelf stock, a fleet team planning an overhaul around a service window. We have been putting Isuzu engine parts into workshops and yards since 2008, and the useful conversation is always short: the engine model, the number stamped on the old unit, and a photo. Everything else follows from there.

As an engine parts supplier working mainly with repair shops, dealers and mining contractors, we would rather spend five minutes confirming a fitment than send a heavy casting across the world to the wrong machine.

Specifications

Reference Numbers & Fitment

• Compare both numbers before you commit. 101603-2800 and 101060-6820 are the references this pump is listed under, but the tag on your old unit may show only one of them, or a number that has since been replaced. Send whichever numbers you have and we will confirm the match in writing.
• Read the engine plate, not the cab decal. The plate on the block tells you what the power unit actually is; a decal from a different build will send you down the wrong path.
• Check the Jo8c reference as well. The listing also carries the Jo8c diesel pump reference used on these engines, so put that beside the two main numbers when you compare tags.
• Look at the drive end and the connections. Flange pattern, drive shaft or gear, inlet and outlet positions and the solenoid plug decide fitment; a photo of each tells us more than a paragraph of description.
• Match the pump, not just the engine family. Isuzu diesel engine parts that look interchangeable often are not: pump bodies, drive arrangements and delivery rates vary, and a unit that bolts up can still meter the wrong quantity.
• Think about what comes off with it. The fuel injection pump parts disturbed during a swap — feed lines, banjo washers, seals — are worth inspecting before they go back on, because a hardened seal can undo a perfectly good pump.
• Ask before you order. Every diesel engine parts supplier can quote a number; the difference is whether anyone checks it against your engine first. We do, and we will tell you when something does not line up.

Failure Signs & When to Replace

A tired pump rarely fails without warning. Long cranking before the engine catches, a cold start that takes two or three attempts, a white haze at start-up that clears once warm — those are the early notes. As wear progresses the engine loses top-end power, lugs down under load, hunts at idle and starts knocking or smoking under acceleration. On a machine working a bench or a quarry face, the first thing the operator reports is usually that it no longer pulls the way it used to.

Fuel economy drifts as well. A pump that delivers more than the engine needs quietly burns extra diesel, and a pump that delivers unevenly makes one cylinder work harder than the rest. Left alone, that imbalance shows up later in exhaust temperature, in the sound of the engine, and in the life of the injectors downstream.

None of this means every symptom points at the pump. Blocked filters, air drawn into the feed line, a weak lift pump and tired injectors all produce a similar story, and replacing a diesel fuel injection pump to cure a blocked filter is an expensive way to learn that lesson. Work through the simple checks first, then look at the pump.

An Isuzu diesel engine is also sensitive to contamination. Water in the fuel, grit past a failed filter or the first shimmer of metal in the sediment bowl are all reasons to stop the machine and investigate, because a pump that is already swallowing debris will not last long after a rebuild or a replacement.

If you are unsure whether the pump is the cause, describe what the machine is doing. As an engine parts supplier we would rather talk you out of an unnecessary purchase than sell you a part that does not solve the problem.

Installation & Commissioning

1. Clean the machine before you open the fuel system. Wash down the pump area and the lines so grit and dust cannot drop into the injection circuit once the fittings are loose.
2. Isolate the fuel supply and record the setup. Note the timing marks, the flange position and the angle of the pump before anything is unbolted; those notes are what you line the replacement up against.
3. Cap every open end. As you disconnect the lines, plug the pump ports and cap the lines immediately — a single piece of grit in a high-pressure line is enough to damage the new unit.
4. Renew the fuel injection pump parts that come off with it. Feed lines, banjo washers, seals and the filter are all disturbed during the swap, and reusing a hardened seal or a cracked hose is a common reason a fresh pump leaks on start-up.
5. Fit the replacement on its drive and flange, then torque the fasteners to the engine manufacturer's figures. Do not improvise on torque, and do not force a flange that will not sit flat.
6. Refill and bleed the system before cranking. Air left on the feed side will make the engine crank without firing and can damage a diesel fuel injection pump that is running dry.
7. Set the Isuzu 6HK1 injection timing to the engine's own procedure, then start and check. Run at idle, watch every joint you touched for leaks, and confirm the throttle response is clean before the machine goes back to work.
8. Re-check after the first working hours. A second look at the fittings and a timing check once the engine has warmed and cooled will catch the small leaks that only appear under load.

Inspection, Test Reports & Documents

Packaging & Delivery

• One pump, one packed unit. The pump ships as a single item in a pack measuring 40 × 35 × 30 cm, and the packed weight is 65 kg — plan a pallet space and a trolley or forklift at the receiving end.
• Packed for a heavy casting. The drive end and the ports are protected and the unit is braced inside its pack; if your warehouse needs a particular pallet height or label format, say so when you order.
• Where it ships. We export to Asia, Europe, Africa, the Americas and Oceania, and we will work with the forwarder you nominate if you already have one.
• Delivery terms. FOB, CFR, EXW, FAS, FCA, CPT, DDP, DDU, DAF and DES are all available; confirm which one applies to your order before the invoice is raised.
• Payment. We accept T/T, MoneyGram and Western Union, and we can invoice in USD, EUR, CAD, AUD, GBP or CNY.
• Lead time and stock. Availability changes week to week, so confirm the current dispatch date with your sales contact before you book the repair into the workshop.
• Warranty. The pump is listed with a one-year warranty; confirm the cover that applies to your order and how a claim would be handled in your market.
• Combining the shipment. If the same repair also needs other Isuzu engine parts, raise it at the quotation stage so everything travels on one set of documents. The same applies when a workshop services more than one engine model.
• Talk to a person. As a diesel engine parts supplier shipping to workshops and distributors worldwide, we would rather spend five minutes on fitment than have a heavy pack arrive with the wrong pump inside.

Storage & Maintenance Care

Between delivery and installation

Leave the pump in its own pack until the machine is actually in the bay. The pack is heavy and awkward for one person, so stand it upright on a pallet or a rack, off a damp floor, under cover, and well away from anything that can fall on it. Never stack another crate on top of it, never stand it on its drive end and never lay it on its side — the housing holds the internals in alignment, and the ports and fittings are the first things to suffer when a pump is parked badly. Check the pack for tears or crush damage within the first few days of arrival, before it disappears into a stores corner; a claim is far easier to settle then than a month later. Keep the port caps and the drive-end protection in place, because they come off on the day of the swap, not before. Keep the packing list, test report and inspection video with the unit so the paperwork is still there if a warranty question ever comes up. If the pump will sit for months rather than weeks, write the arrival date on the pack and look it over again before fitting: caps still tight, no rust bloom on the drive splines or flange face, no solvent or degreaser residue on the seals. Rotate stock oldest-first so a pump does not stay on the shelf while a newer one goes onto the machine. And do not open the pump, disturb the delivery valves or move the control lever to see how it works — a unit taken apart on the bench is no longer a unit we can stand behind.

Once it is working

The care that keeps an Isuzu 6HK1 fuel injection pump alive is mostly fuel hygiene. Drain the water separator on the schedule the engine asks for, fit filters on time rather than when the engine starts to struggle, and keep the tank topped up between shifts so condensation has less room to form. Never let the engine pull the system dry, and never use ether or starting fluid to coax a diesel into life — both cause damage that surfaces later in the pump. When the machine is washed, keep the pressure lance away from the pump body, the solenoid connector and the breather; water forced past a connector is how a sound pump becomes an electrical fault. Dusty work — quarry, demolition, bulk handling — is the hardest environment for the linkage and seals, so make the pump area part of the weekly walk-around and look for dampness at the joints before it turns into a drip. If a machine is going to stand idle for a long period, run it up to working temperature every few weeks instead of leaving it cold, and keep the fuel system closed and the tank full. As a diesel engine parts supplier, we would much rather answer a storage question on day one than replace a pump that corroded in a warehouse.

Technical Support & Model Matching

Choosing the right reference is where most orders succeed or fail, so our team works with you before you commit: send the equipment details and the numbers you already have, and we will cross-check them against the options our supplier network holds, confirm the details that decide fitment, and suggest an alternative when a number has been replaced. After delivery we stay reachable by email, phone and video for installation questions and fault-finding. Founded in 2008 and based in Guangzhou, we export to Asia, Europe, Africa, the Americas and Oceania.
